About

Transparent egress routing for Envoy. Applications make normal DNS lookups and TCP connections — this extension intercepts both so Envoy can control which upstream cluster handles each domain, attach metadata (auth tokens, policy IDs), and enforce routing policy, all without any application changes.

Use cases

  • Route outbound traffic through different upstream proxies based on destination domain
  • Attach per-domain credentials or policy metadata to proxied connections
  • Enforce egress access control by selectively intercepting DNS for specific domains

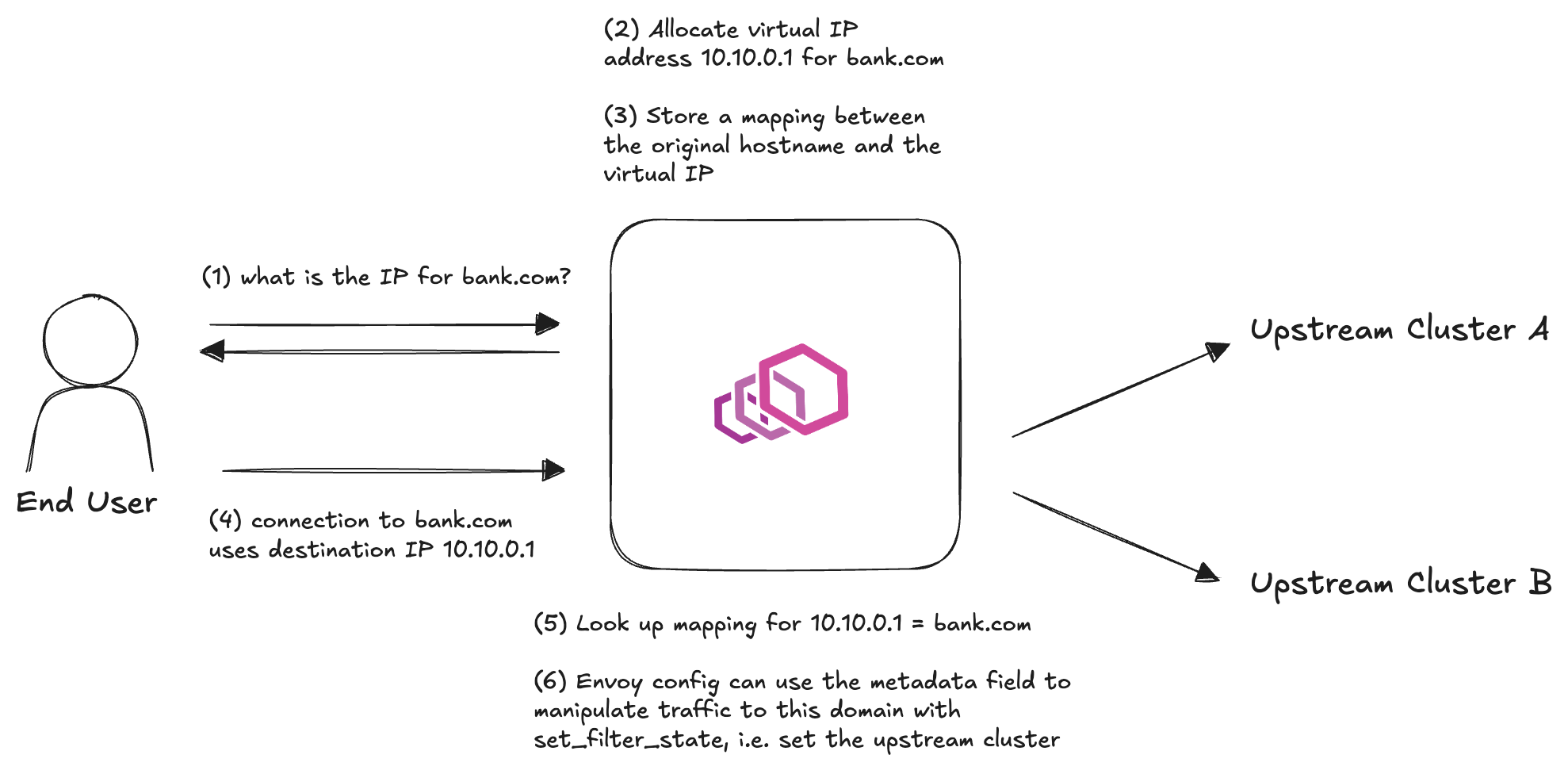

How it works

The extension is a pair of filters that work together. Both are provided by the same dns-gateway dynamic module; enable each by its filter type (udp_listener and network).

  1. UDP listener filter — Intercepts DNS queries for configured domain patterns. For each matched query, allocates a virtual IP from a dedicated CIDR range and responds with an A record. The application receives this virtual IP and connects to it as if it were the real destination. Non-matching queries pass through to upstream resolvers.

  2. Network filter — When the application opens a TCP connection to a virtual IP, this filter looks up the original domain and its configured metadata from a shared cache and sets them as Envoy filter state. Downstream filters (e.g. tcp_proxy, set_filter_state) can then use this to select the upstream cluster, set headers, or apply policy.

Configuration

UDP listener filter

Field Type Required Description
domains array yes List of domain patterns to intercept
domains[].domain string yes Exact (example.com) or single-level wildcard (*.aws.com)
domains[].base_ip string yes Base IPv4 address of the virtual IP CIDR range (e.g. 10.0.0.0)
domains[].prefix_len integer yes CIDR prefix length (1–32). A /24 gives 256 virtual IPs
domains[].metadata object no String key-value pairs propagated to filter state
fail_open boolean no If true, forward queries upstream when a CIDR range is exhausted. Default: false (return NODATA)

Network filter

Field Type Required Description
filter_state_prefix string no Prefix for filter state keys. Default: io.builtonenvoy.dns_gateway

Filter State

The network filter writes the following keys to Envoy filter state, readable by downstream filters via %FILTER_STATE(<key>:PLAIN)%:

Key Example Description
<prefix>.domain bucket-1.aws.com The matched domain from the DNS query
<prefix>.metadata.<key> aws_cluster Per-domain metadata values from config

The default prefix is io.builtonenvoy.dns_gateway.

Prerequisites

Requires iptables/nftables rules to redirect application traffic to Envoy:

  • DNS: UDP port 53 redirected to Envoy's DNS listener
  • TCP: Outbound connections to virtual IP ranges redirected to Envoy's TCP listener

Usage Examples

Single Wildcard Domain

Intercept DNS queries for *.aws.com and route TCP connections to virtual IPs via the shared cache. Both filter types are required: specify the extension twice, once per filter type. The udp_listener filter carries the domain config; the network filter requires no configuration.

boe run \
  --extension dns-gateway --filter-type udp_listener --config '
    {
      "domains": [
        {
          "domain": "*.aws.com",
          "base_ip": "10.0.0.0",
          "prefix_len": 24,
          "metadata": {
            "cluster": "aws_cluster"
          }
        }
      ]
    }' \
  --extension dns-gateway --filter-type network

Multiple Domains with Routing Metadata

Route different domain patterns to different upstream clusters using per-domain metadata. Downstream filters can read the domain and metadata from Envoy filter state, e.g. %FILTER_STATE(io.builtonenvoy.dns_gateway.domain:PLAIN)% in a tcp_proxy route.

boe run \
  --extension dns-gateway --filter-type udp_listener --config '
    {
      "domains": [
        {
          "domain": "*.aws.com",
          "base_ip": "10.0.0.0",
          "prefix_len": 24,
          "metadata": {
            "cluster": "aws_cluster",
            "token": "abc123"
          }
        },
        {
          "domain": "example.com",
          "base_ip": "10.0.1.0",
          "prefix_len": 24,
          "metadata": {
            "cluster": "example_cluster",
            "token": "def456"
          }
        }
      ]
    }' \
  --extension dns-gateway --filter-type network
